Description
TriCAM
The stylishly design TriCAM CX560 is integrated with a high resolution intraoral camera, a 5.6”TFT LCD screen, and X-ray film reader.
Images captured from the intraoral camera or the X-ray film reader can all be saved with a simple press of a button to the microSD card.

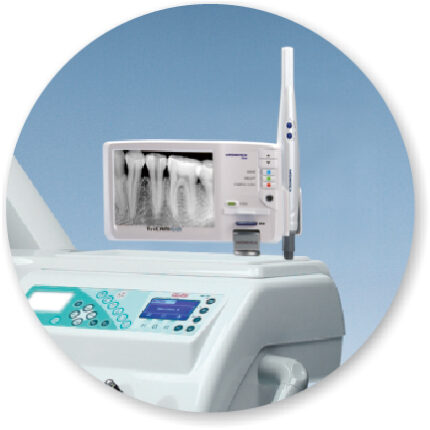

The unit can freely rotate in every angle for better viewing and operation, also it can be integrated into trolley or dental units.

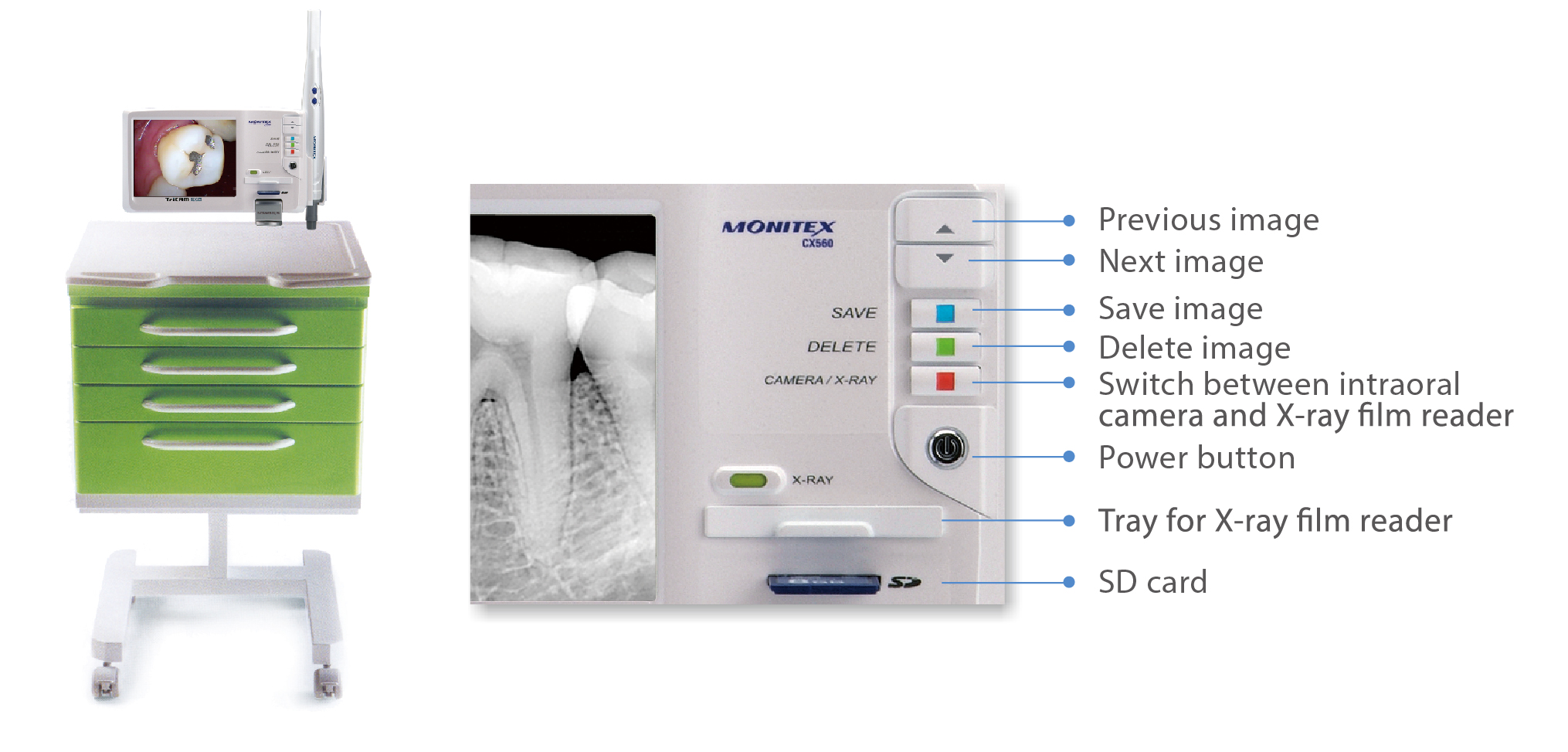

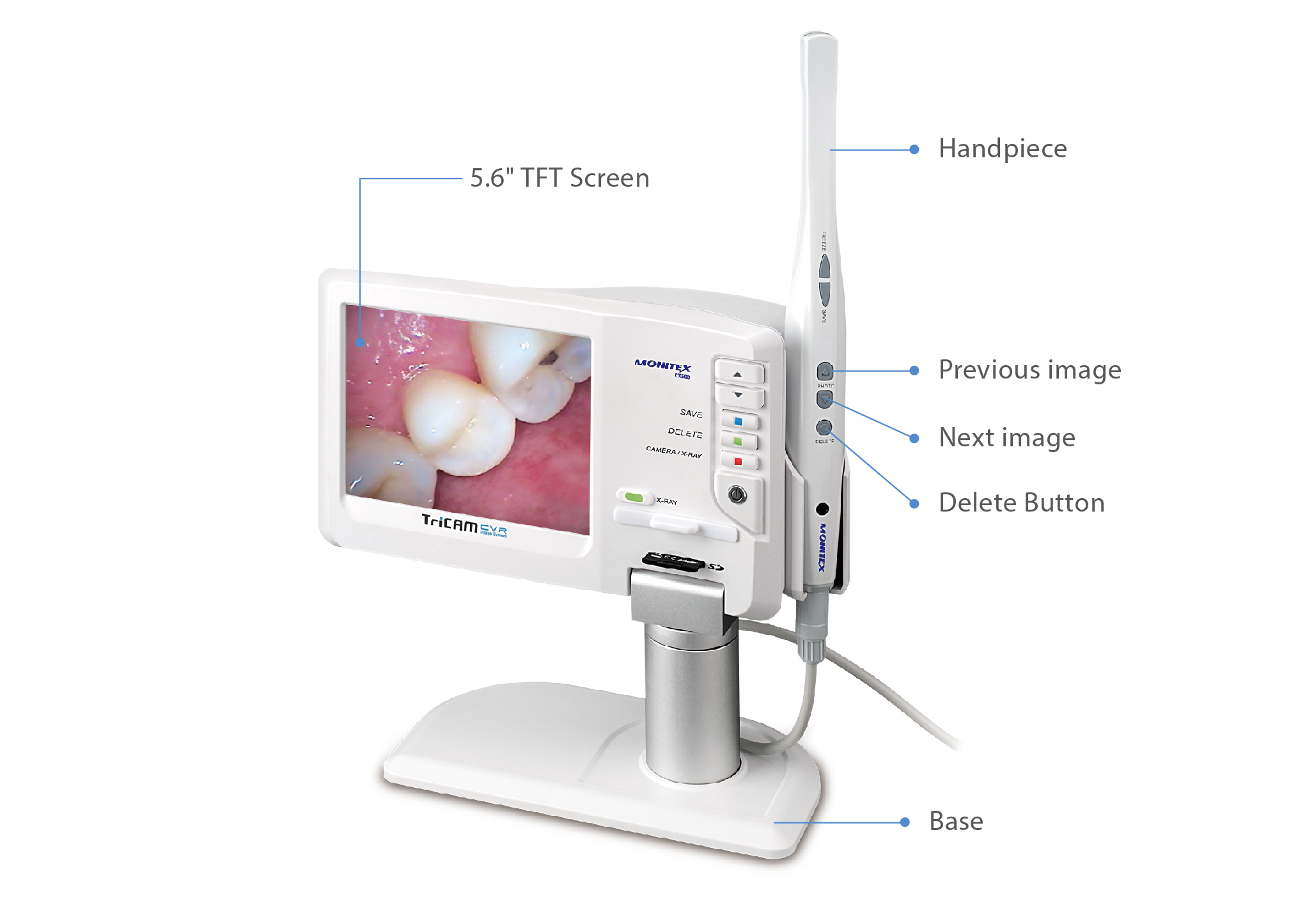

PARTS & FUNCTIONS
Can connect to another monitor via video and VGA output
Easily switch between viewing intraoral camera images and X-ray lm reader images
Specifications
Intraoral Camera |
|
| Resolution | 300,000 pixels |
| Image Sensor | 1/4″ CMOS |
| White Balance | Auto |
| Focal Length | 4 mm ~ 35 mm |
| Illumination Type | 6 white LED |
| Handpiece Dimensions | 235(L) x 22(W) x 25(H) mm |
| Handpiece Weight | 48.6 g |
Monitor |
|
| Image Output | MicroSD, VGA, Video |
| Display | 5.6” TFT LCD |
| Resolution | 640 x 480 |
| Power Input | AC 100~240V, 50/60 Hz |
| Power Output | DC 5V—2A |
| Dimensions | 235(L) x 102(W) x 212(H) mm |
| Weight | 1.27 kgs |
